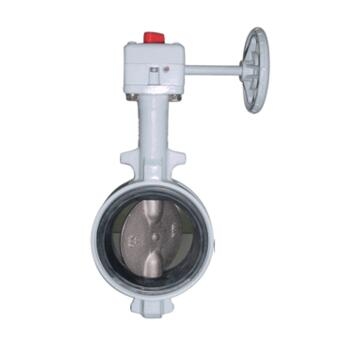

| PN16 | 球墨铸铁DJ型蝶阀(锅轮式) KITZ 北泽 | | DJ Series Ductile lron Butterfly Valves, Gear Operated |
|
|
|
| 材质[Materials]| 零件[Parts] | 材质 | | 阀体[Body] | 球墨铸铁 | | 阀杆[Stem] | 13%Cr不锈钢 | | 碟板[Disc] | 球墨铸铁
304型不锈钢 | | O型圈[O-ring] | 橡胶 | | 橡胶密封垫[Sest rubber] | 橡胶 |
尺寸 [Dimensions] (mm)| DN | mm | | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 |
| | inch | | | d | | 50 | 65 | 80 | 100 | 125 | 150 | 197 | 246 | 295 | 334 | 385 |
| | H | | 226 | 234 | 252 | 262 | 290 | 302 | 365 | 506 | 531 | 600 | 655 |
| | L | | | D | | 90 | 104 | 124 | 146 | 176 | 206 | 257 | 312 | 364 | 407 | 466 |
| | C | | 120 | 140 | 160 | 185 | 225 | 260 | 305 | 380 | 430 | 480 | 540 |
| | D1 | | 110 | 110 | 110 | 110 | 110 | 110 | 170 | 310 | 310 | 360 | 360 |
| | L1 | | 135 | 135 | 135 | 135 | 150 | 150 | 180 | 280 | 280 | 310 | 310 |
| | E | | 96 | 96 | 96 | 96 | 96 | 96 | 148 | 221 | 221 | 269 | 269 |
|
|
| PN16 | 球墨铸铁DJ型碟阀(手柄式) KITZ 北泽 | | DJ Series Ductile lron Butterfly Valves,lever Opersted |
|
|
PN16DJ
PN16DJE
PN16DJU
PN16DJUE
|
 |
|
| 材质[Materials]| 零件[Parts] | 材质 | | 阀体[Body] | 球墨铸铁 | | 阀杆[Stem] | 13%Cr不锈钢 | | 碟板[Disc] | 球墨铸铁
304型不锈钢 | | O型圈[O-ring] | 橡胶 | | 橡胶密封垫[Seat rubber] | 橡胶 |
尺寸 [Dimensions] (mm) |
